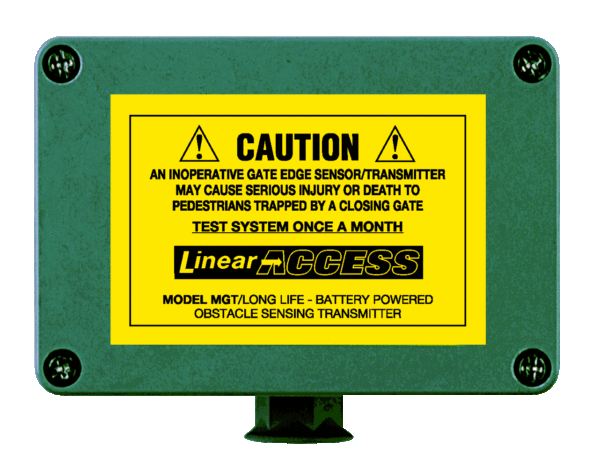

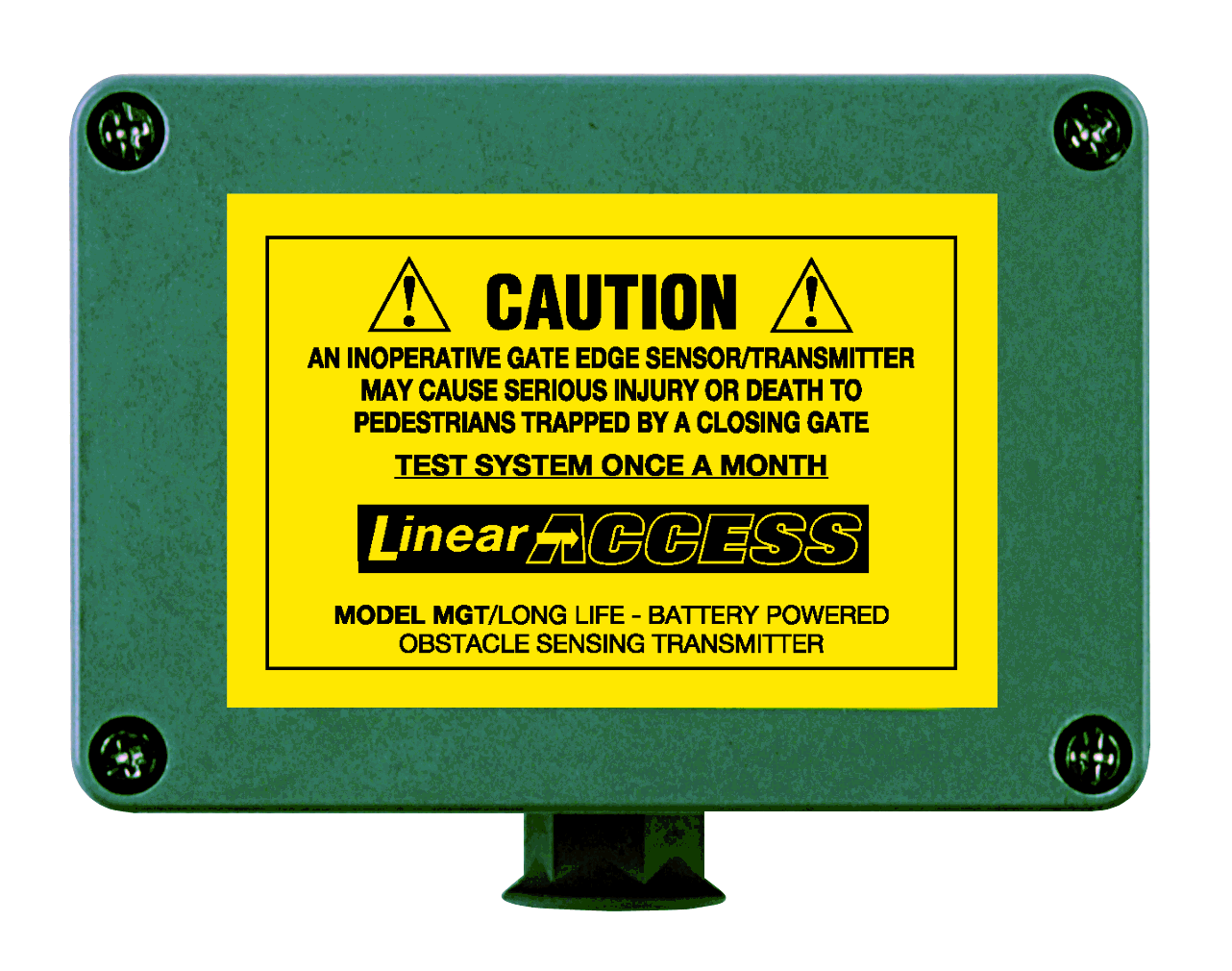

Linear Gate Transmitter Model MGT

$119.00

Linear MGT Supervised Gate Edge Transmitter

The MGT is for adding fully supervised obstacle sensing for motorized gates, doors or barrier arms in any Linear access control system. It mounts directly on the gate, door, or barrier and wires to a standard exterior safety edge sensor (for a full featured compatibility, a Miller Edge sensor with an optional .001 UF capacitor is recommended). If an object is hit during the gate closing, the sensor will present a closed circuit across the connecting wires and the MGT will transmit a message to the access controller to reverse the movement of the gate. Two MGT transmitters can be used with an AM/II or telephone entry system; one MGT can be connected to an AP-4 controller. The MGT is the industry’s only fully supervised gate safety edge transmitter. It automatically sends an hourly status report to the access controller, indicating battery condition and if the transmitter is operational. Should the edge sensor be disconnected, shorted, or tampered with, the MGT will report a trouble condition. The access controller indicates the trouble condition by flashing its obstacle light; the system’s LCD display identifies the problem and a printer can log the event. The trouble condition can be easily cleared by pressing # and 1 on the controller keypad. The MGT transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through selaed interior mounting screws.

GENERAL SPECIFICATIONS
Dimensions: 4.31in L x 2.94in H
Color: gray case
Power: two 3V DL-2450 lithium batteries (supplied)
Battery Life: up to five years
Frequency: 318MHZ
Product Number: DNT00068
Compatibility: one or two MGTs per AM/II or telephone entry;one per AP-4; use with a standard exterior safety edge sensor (for full feature compatibility, use a Miller gate edge sensor with an optional .001 UF capacitor)

Compatible Products:

AM-RPR Remote Proximity Receiver
AM-WOR Radio Reader with Wiegand Output
AP-4 Single Door Gate Controller with a Built-In Radio Receiver
AM/II Multidoor Access Controller
AE-1 Liquid Crystal Display Telephone Entry
AE-2 Vacuum Fluorescent Display Telephone Entry
